Product Details

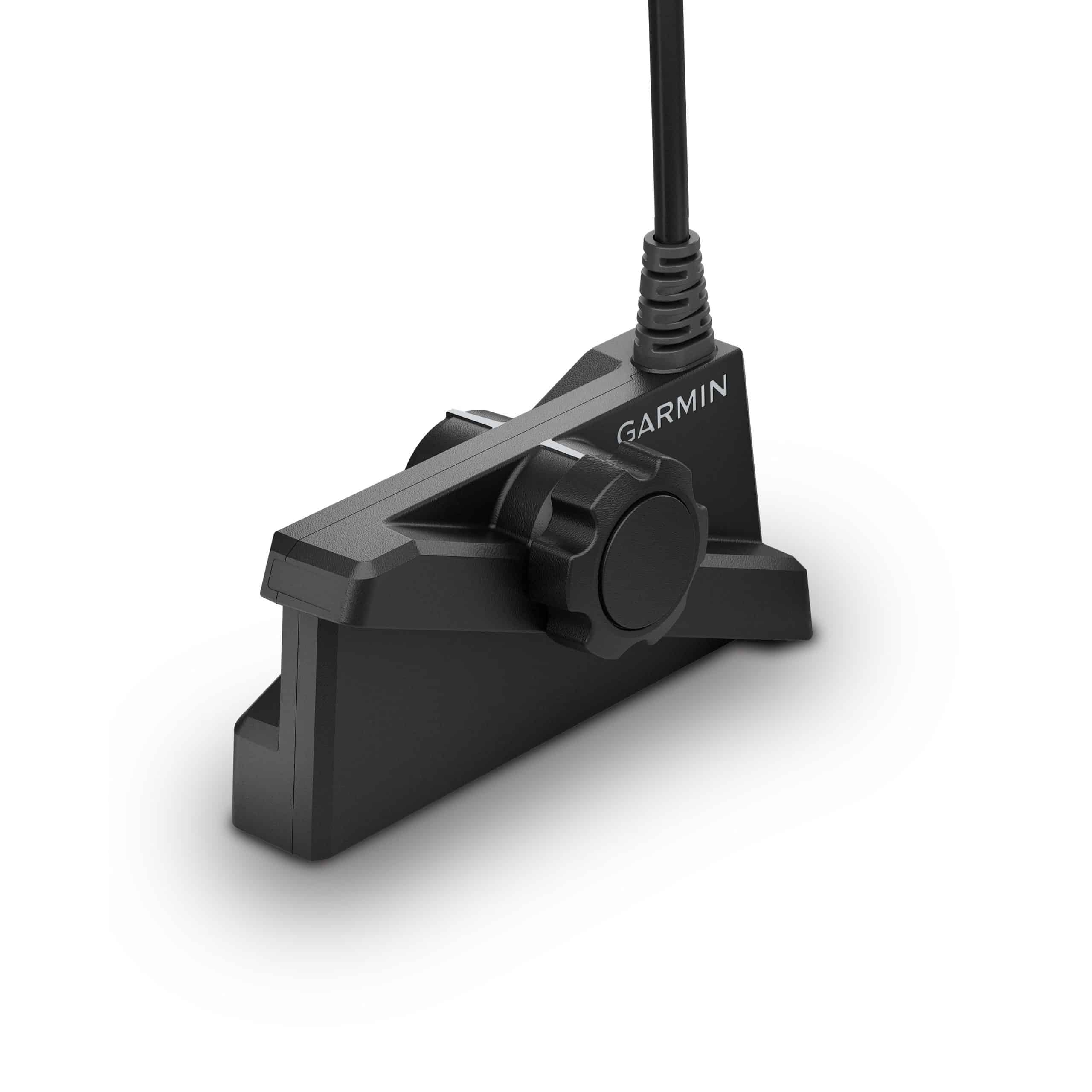

Garmin LiveScope™ Plus (LVS34 Transducer only)
75375929846
The Garmin LiveScope Plus (LVS34 Transducer only) is the perfect tool for all your fishing trips. With its powerful scanning capabilities, you’ll be able to see clearly and improved life-like images below the water, giving you the confidence to find fish down to 200 feet. The LiveScope Plus guarantees sharp image quality and low latency, so you can monitor the structure and fish movement quickly and with clarity. Adjust the transducer to fit where you fish; Forward mode shows what’s out in front of your boat and slightly below, Down mode gives you a view of what’s directly below, and Perspective mode is great for a top-down view. Plus, it also offers improved range and noise reduction, allowing you to gain more insight into fish behavior with the most realistic view available. With the LiveScope Plus, your fishing skills will never be the same!
In the Box:
- Shaft mount
- Documentation
- Perspective mount
- Panoptix LVS34 transducer
- Trolling motor barrel mount
Features
- Sharper images with reduced noise and fewer sonar artifacts that impede a clear picture of fish and structure
- Live sonar images with improved screen clarity, increased transducer sensitivity, and better target separation
- New transducer can be used with the existing LiveScope™ System black box (GLS™ 10) for easy upgrade
- Supports Forward, Down, and Perspective modes with all necessary mounts included in the box
- Vivid color palettes for enhanced detail and clarity
Specs
- Temperature range: Operating: 0 C to 40 C
- Power usage: 21 w typical, 58 w max
- Compass-safe distance: 4″ (0.1 M)
- Transducer beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
- Target separation @100′: 14″
- Frequency: 530 – 1,100 khz
- Weight: 2.25 Lbs (1.02 Kg)
- Transmit Power: 500 W
- Power input: 10-32 v
- Sonar type: Live
- Waterproof: IPX7
- Fuse: 7.5 A
- Maximum depth: Down and Forward: 200’ (61.0 M)
- Garmin marine network ports: 1 (small connector)
- Dimension: 6.4″ X 3.1″ X 1.9″ (16.2 X 3.1 X 4.8 Cm)
